Industrial Electric Boiler | Efficiency, Cost & Manufacturers

Reading Volume:

An industrial electric boiler is a type of heating system that uses electricity to generate heat and provide hot water or steam for industrial processes. Unlike conventional boilers that use fossil fuels or biomass as their primary source of energy, electric boilers use electricity as their primary source of power.





How does industrial electric boiler work?

The operation of an industrial electric boiler is relatively simple. It contains an electric heating element, which is powered by electricity from an external source. When the electric heating element is turned on, it generates heat, which is transferred to the water or steam that circulates through the boiler.

The water or steam is heated to a predetermined temperature, which is controlled by a thermostat or other control device. Once the water or steam reaches the desired temperature, it is circulated through pipes to provide hot water or steam for various industrial applications.



How efficient are industrial electric boilers, and what factors affect their efficiency?

Industrial electric boiler efficiency

Industrial electric boilers can be highly efficient, with efficiency ratings typically ranging from 95% to 100%. The efficiency of an electric boiler depends on several factors, including:

  • Insulation: The level of insulation around the boiler affects its efficiency. Adequate insulation reduces heat loss and improves the boiler’s overall efficiency.
  • Operating temperature: The higher the operating temperature of the boiler, the lower its efficiency. For this reason, it’s important to choose an electric boiler with the appropriate output capacity for your application, as oversized boilers may operate at unnecessarily high temperatures and waste energy.
  • Load factor: The load factor, or the amount of time the boiler operates at full capacity, affects its efficiency. Electric boilers are most efficient when they operate at full capacity for extended periods of time, as this minimizes the amount of time required to heat the water.
  • Water quality: The quality of the water used in the boiler can affect its efficiency. Hard water, for example, can cause mineral deposits to build up in the boiler, reducing its efficiency over time.
  • Maintenance: Regular maintenance is important to ensure that the electric boiler is operating at peak efficiency. This includes cleaning and descaling the boiler, inspecting electrical components, and checking for leaks or other issues that could affect its performance.
  • Control system: A good control system can improve the efficiency of an electric boiler by optimizing its performance and reducing energy waste. Features such as modulating control, temperature sensors, and automatic shut-off can all help to improve the efficiency of an electric boiler.

Overall, the efficiency of an electric boiler depends on a variety of factors, and it’s important to choose a boiler that is appropriate for your application and properly maintained to ensure optimal performance.

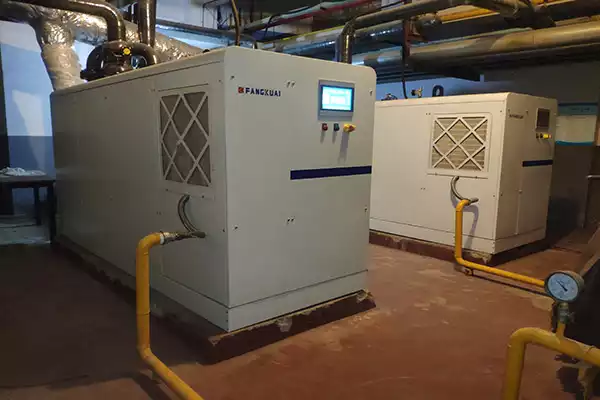

industrial electric boiler



What is the cost of operating an industrial electric boiler compared to other boilers?

Industrial electric boiler price

The cost of operating an industrial electric boiler can vary depending on several factors, including the size and output capacity of the boiler, the cost of electricity in your area, and the frequency of use. In general, electric boilers are often more expensive to operate than gas or oil boilers, particularly in areas where electricity rates are high.

The cost of operating an electric boiler can be calculated using the following formula:

Cost per hour = Power (kW) x Hours of operation x Cost of electricity per kWh

For example, if you have a 100 kW electric boiler that operates for 10 hours per day, and your electricity rate is $0.10 per kWh, the cost per hour would be:

Cost per hour = 100 kW x 10 hours x $0.10/kWh = $100

This means that the cost of operating the electric boiler for one day (24 hours) would be $2400.

In general, the choice between an electric boiler and other types of boilers depends on the specific needs of your application and your priorities in terms of cost, energy efficiency, safety, and environmental impact.



Who makes industrial electric boilers?

Industrial electric boiler manufacturers

There are several manufacturers of industrial electric boilers, including:

  1. Fangkuai Boiler: This company offers a range of electric boilers for industrial and commercial applications, with output capacities ranging from 10 kW to 140 MW.
  2. Chromalox: Chromalox manufactures a variety of electric boilers, including immersion boilers, circulation heaters, and packaged boilers, with output capacities up to 25 MW.
  3. Fulton: Fulton offers a line of electric boilers for industrial and commercial applications, including vertical and horizontal models with output capacities ranging from 12 kW to 1,000 kW.
  4. Electro-Steam Generator Corp: This company specializes in electric boilers for steam and hot water applications, with output capacities ranging from 1.5 kW to 270 kW.
  5. Hurst Boiler and Welding Company: Hurst offers a line of electric boilers for a variety of applications, including process heating, clean steam, and building heat, with output capacities up to 6 MW.
  6. Smith Hughes Company: This company specializes in electric boilers and offers a variety of models for industrial and commercial applications, with output capacities ranging from 6 kW to 3 MW.

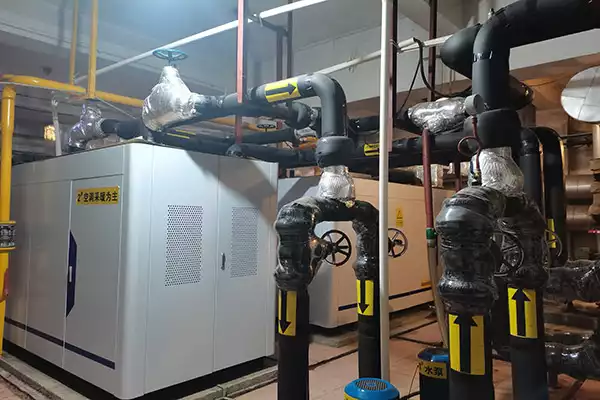

industrial electric boiler price



What size of an electric boiler is appropriate for my industrial application?

Industrial electric boiler consumption

Here are some steps you can take to estimate the size of the electric boiler that would be appropriate for your industrial application:

  1. Calculate the heating load: This is the amount of heat energy required to raise the temperature of your process fluid from its initial temperature to the desired output temperature. You can calculate the heating load using the formula: Heating load (kW) = Flow rate (kg/h) x Specific heat (kJ/kg·K) x Temperature rise (°C) / 3600.
  1. Determine the operating conditions: The operating conditions of your industrial application can affect the size of the electric boiler you need. Consider factors such as the maximum and minimum operating temperatures, the flow rate of the process fluid, and the pressure requirements.
  2. Determine the efficiency of the boiler: The efficiency of the electric boiler can affect the size you need. A more efficient boiler will require less power to achieve the same output temperature.
  3. Size the boiler: Once you have calculated the heating load, determined the operating conditions, and estimated the efficiency of the boiler, you can size the boiler using the formula: Boiler size (kW) = Heating load (kW) / Efficiency.



How do I maintain an industrial electric boiler to ensure optimal performance and longevity?

Regular maintenance of an industrial electric boiler is essential for ensuring optimal performance and longevity. Here are some tips for maintaining your boiler:

  1. Regular Inspection: Inspect the boiler regularly to ensure that all components are in good working order. Check the electrical connections, control panel, safety valves, and heating elements.
  2. Water Quality: Monitor the water quality and ensure that it meets the required standards. Poor water quality can cause scaling, corrosion, and other issues that can affect the performance of the boiler.
  3. Clean and Descale: Regularly clean the boiler and descale it to remove any buildup of mineral deposits that can affect the efficiency of the heating elements. Use appropriate chemicals and follow the manufacturer’s instructions for cleaning.
  4. Check the Controls: Check the controls and safety devices regularly to ensure that they are functioning correctly. Test the high and low water level controls, the pressure relief valve, and the temperature controls.
  5. Lubricate: Lubricate the motors and other moving parts regularly to ensure smooth operation.
  6. Replace Worn Components: Replace any worn components, such as heating elements or sensors, as soon as they are identified. This will prevent further damage and extend the life of the boiler.
  7. Schedule Maintenance: Schedule regular maintenance with a qualified technician to ensure that the boiler is operating correctly and to identify any potential issues before they become major problems.

By following these tips, you can maintain your industrial electric boiler and ensure that it operates efficiently and effectively for years to come.



industrial electric boiler manufacturers



Conclusion.

In general, industrial electric boilers are a popular choice for many industries due to their efficiency, safety, and ease of installation. They are a reliable source of heat and can be used in a variety of applications, including process heating, space heating, and water heating. If you want to learn about the detailed parameters and prices of industrial electric boilers, please contact us at +0086 186-2391-5479.
